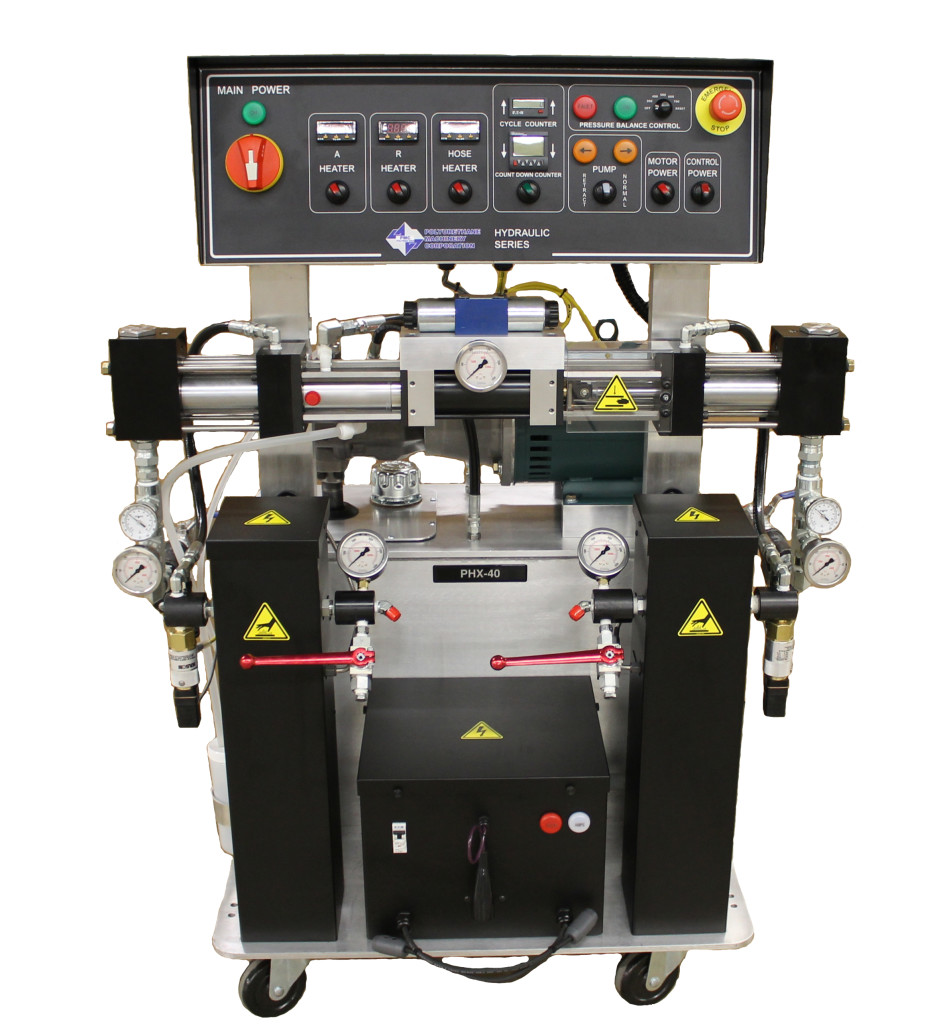

PH-40 2000 psi (138 bar)
PH-40 2000 psi (138 bar) – Ideal for use in High Output Roofing Applications
Includes Pressure Balance Control System and Count Down Shutoff
| PH-40 |
|
|---|---|
| Output |
40 lbs/min
(18.14 kg/min)
|
| Max Working Pressure |
2,000 psi (138 bar)
|
| Max Hose Length |
410 ft (121.9 m)
|
| Heater Wattage |
15,000 watts Total (Dual htr)
18,000 watts Total (Dual htr)
21,000 watts Total (Dual htr)
|
| Hose Heating Power |
120 Volts
|
| Max Fluid Temperature | 190 F (87.7 C) |
| Air Consumption @ 100 psi (6.9 bar) |
Not Applicable
|
| Main Voltage |
1 x 208-230V, 60 Hz
|
| Electrical @ |
130A–15,000W heaters
|
| Main Voltage | 3 x 208-230V, 50/60 Hz, 3 x 380V, 50/60 Hz |
| Electrical @ |
75A–15,000W heaters
89A–18,000W heaters
103A–21,000W heaters
|
| Dimensions |
40”w x 26”d x 52”h
(101cm x 66cm x 132cm)
|
| Weight |
555 lbs(251.7 kg)
|
