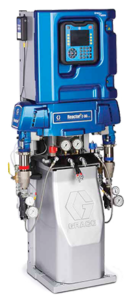

Graco Reactor 2 E-XP2
- Better control – with Graco InSite™ remote reporting, you can manage your business wherever you are
- Better documentation – automatically collect job log data and spray parameters – lets you confirm the job was sprayed to specifications
- Better fleet and crew management
- Better cost containment and forecasting
- Compact footprint – more room in your spray rig
- Ergonomic design – easier to service
- Advanced circuit boards
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
| Graco–Reactor 2 E-XP2 & E-XP2Elite | |
|---|---|
| Output | 2 gal/min (7.6 L/min) |
| Max Working Pressure | 3,500 psi (240 bar) |
| Max Hose Length | 310 ft(94 m) |
| Heater Wattage | 15,000 WattHeater |
| Max Fluid Temperature | 190 °F (88 °C) |
| Main Voltage / Electrical | 1-ph x 230 V, 100 Amps 3-ph x 230 V, 62 Amps 3-ph x 400 V, 35 Amps |
| Weight | 350 lbs(159 kg) |
